Object Module Matrices

Every object module owns a matrix that defines it's object's position, size and orientation in space.

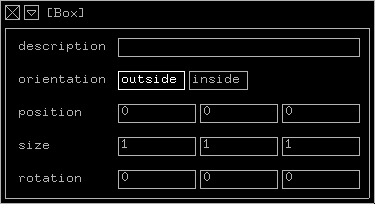

You define the matrix of an object module either by entering position, size and rotation values in the inspector ...

.... or by moving the object's handles in object mode.

Once defined, the matrix of an object module stays constant. If you want to animate the position, size or rotation of an object, you have to use matrix modules:

Matrix Modules

Matrix modules enable you to interactively change the values of a matrix in play mode by connecting their value in connectors to modulators.

There exists a matrix module for each of the operations translate, rotate and scale:

For convenience, there exists the transform module, which performs the operations of the above modules in the same order:

Matrix Hierarchy

A set of modules that are connected with matrix connections define a hierarchy:

The image to the left depicts a simple hierarchy of the four matrix modules and an object module.

If the matrix of a parent module is changed, the transformation of all it's ancestors (the parent's children, their children, and so on) will change accordingly. The mini tutorial 'matrices' explains this behavior more detailed.

Let's call a module which has an empty matrix in connector the root module of an hierarchy (the gray transform module in this case).

Identity Matrix

You can interrupt the inheritance of matrices in a matrix hierarchy by inserting an identity matrix module. The identity matrix module 'ignores' the matrix of it's parent module so that it's children behave like root modules but are still part of the bigger hierarchy.

This is sometimes necessary because the camera module and the attribute hub module depend on the hierarchy information as well.

Matrix Hub

Each object module has at least one matrix out connector. If you want to add more children than there are connectors, you have to use the matrix hub module, which simply forwards the matrix of it's parent to it's 5 possible children.

Goto & Label

You may insert label modules in your matrix hierarchy.

It can be used in conjunction with goto modules (see below) or act as a switch: If you deactivate a label, the modules in the subhierarchy at the label's matrix out connector will be ignored when rendering the scene.

The label module behaves like the matrix hub module: it forwards the matrix at it's matrix in connector to the module at the matrix out connector.

The goto modules enables you to 'link' subhierarchies and therefore provide a powerful way to reuse complete module structures in your projects.

If kodisein encounters a goto module while traversing the matrix hierarchy for rendering, it continues the traversal at the label, which is linked to the goto module via it's name.
